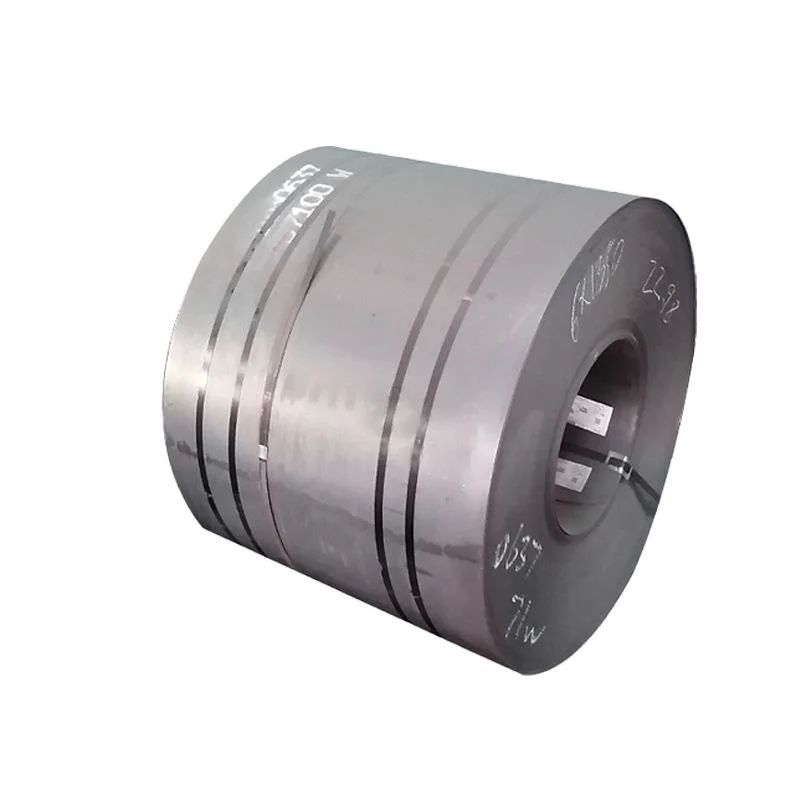

A572/S355JR Carbon Steel Coil
A572 grades are divided into: 42, 50, 60, 65. The steel plate is light in weight, but has good strength, ductility and workability, making it an ideal choice for structural applications. These characteristics make the A572 relatively simple to shape into different structures, while maintaining the ability to withstand large stresses and loads.
Product Parameters
| Product Name | A572/S355JR Carbon Steel Coil |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 45mm-2200mm |
| Length | Custom Size |
| Thickness | Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| A572 | C | Mn | P | S | Si |
| Grade42 | 0.21 | 1.35 | 0.03 | 0.03 | 0.15-0.4 |
| Grade50 | 0.23 | 1.35 | 0.03 | 0.03 | 0.15-0.4 |
| Grade60 | 0.26 | 1.35 | 0.03 | 0.03 | 0.40 |
| Grade65 | 0.23-0.26 | 1.35-1.65 | 0.03 | 0.03 | 0.40 |
Mechanical Properties
| A572 | Yield Strength(Ksi) | Tensile Strength(Ksi) | Elongation% 8inches |
| Grade42 | 42 | 60 | 20 |
| Grade50 | 50 | 65 | 18 |
| Grade60 | 60 | 75 | 16 |
| Grade65 | 65 | 80 | 15 |
Physical Performance
| Physical Performance | Metric | Imperial |
| Density | 7.80g/cc | 0.282 lb/in³ |
Scope of Application
ASTM A572 carbon steel low-alloy steel is widely used as bridge panels, support plates, mechanical mounting plates, etc. for construction equipment, transmission towers, racks and other equipment.
Equivalent Material
| EU | German Standard | Japanese Standard | French Standard | British Standard | Canada | Italy | Spain | National Standard | International | Portugal | India |
| EN | DIN, WNr | JIS | AFNOR | BS | HG | UNI | UNE | GB | ISO | NP | IS |
| S355JR | St52-3 | SM490A | E36-2 | 50B | 350W | Fe510B | AE355B | Q345B | E355C | FE510-B | IS961 |
PACKING AND DELIVERY
Our products cover carbon steel, galvanized, galvanized and color-coated products. The company enjoys a high reputation in the steel product chain, and our products are exported to the Middle East, Europe, Latin America, South America and Southeast Asian countries.
HONOR CERTIFICATE
FACTORY WORKSHOP
FAQ
Once the products received by customer were found not comply with the products or contract demands, what will you do?
We will compensate the customer for all the loss without any hesitation.
Do you provide samples Is it free or extra?
Yes, we could offer free samples.
What certifications do your products have?
We have ISO 9001, SGS, EWC and other certifications.
What kind of payment terms would you accept?
We always do T/T.30% T/T as deposit,70% T/T as balance.
What is the delivery time?
10-15 days
What is your MOQ?
We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
