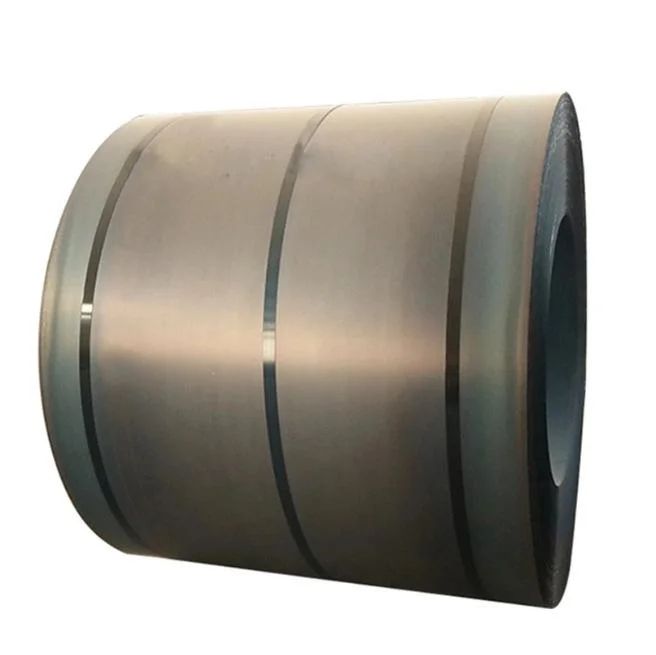

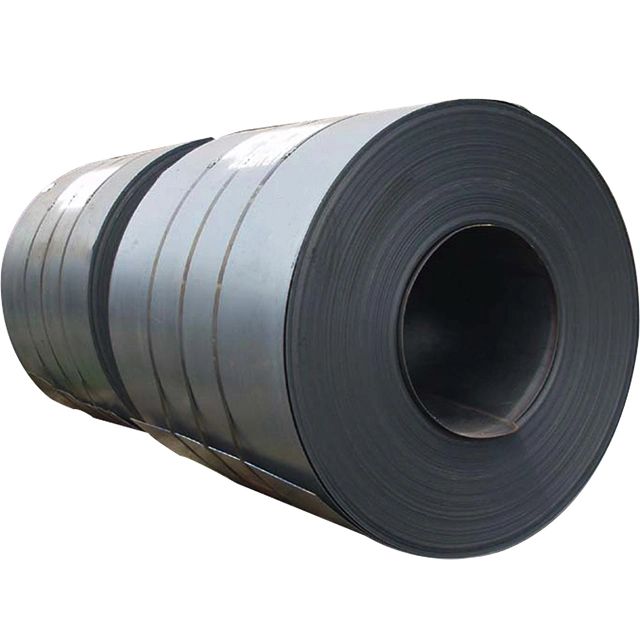

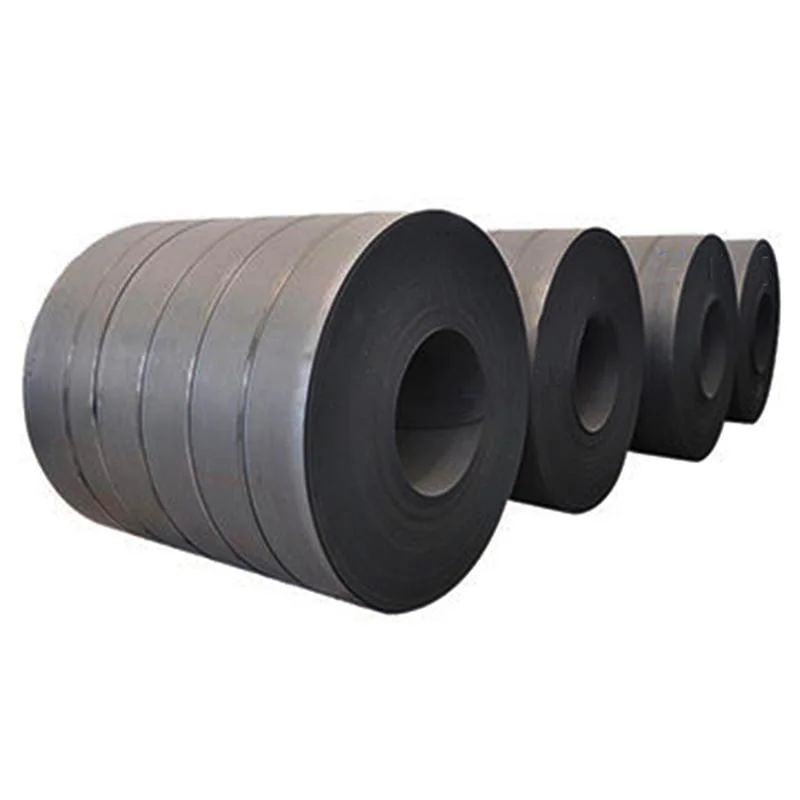

A709/S355J0W Carbon Steel Coil
ASTM A709 steel coil is in accordance with the standard specification for bridge structural steel, ASTM A709 steel coil is a carbon, high strength low alloy and quenched and tempered alloy steel mainly used in bridge construction. BBN offers the following 5 grades of steel coils: A709,36, 50, 50W, HPS 50W. The atmospheric corrosion resistance index of 50W, HPS 50W and HPS 70W are 6.0.
Product Parameters
| Product Name | A709/S355J0W Carbon Steel Coil |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE etc. |
| Width | 45mm-2200mm |
| Length | Custom Size |
| Thickness | Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| A709 | 50W | 50 | 36 | |||||
| Type A | Type B | Type C | ≤ 20mm | 20-40mm | 40-65mm | 65-100mm | ||
| C | 0.19 | 0.20 | 0.15 | 0.23 | 0.25 | 0.25 | 0.25 | 0.27 |
| Mn | 0.80-1.25 | 0.75-1.35 | 0.80-1.35 | 1.35 | – | 0.80-1.20 | 0.80-1.20 | 0.80-1.20 |
| P.max | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 |
| S.max | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Si.max | 0.30-0.65 | 0.30-0.65 | 0.15-0.40 | – | 0.40 | 0.40 | 0.15-0.40 | 0.15-0.40 |
| With..min | 0.25-0.40 | 0.20-0.40 | 0.20-0.50 | – | 0.20 | 0.20 | 0.20 | 0.20 |
| Ni.max | 0.40 | 0.50 | 0.25-0.50 | – | – | – | – | – |
| Cr | 0.40-0.65 | 0.40-0.70 | 0.30-0.50 | – | – | – | – | – |
| V | 0.02-0.10 | 0.01-0.10 | 0.01-0.10 | – | – | – | – | – |
Mechanical Properties
| A709 | Thicknessmm | Yield Strengthmin | Tensile Strengthmin | Elongation% | |
| 200mm | 50mm | ||||
| 36 | ≤100 | 250 | 400-550 | 20 | 23 |
| 50 | ≤100 | 345 | 450 | 18 | 21 |
| 50S | – | 345-450 | 450 | – | – |
| 50W, HPS50W | ≤100 | 345 | 485 | 18 | 21 |
| HPS70W | ≤100 | 485 | 585-760 | – | 19 |
| 100, 100W, HPS100W | ≤ 65 | 690 | 760-895 | – | 18 |
| 100, 100W | 65-100 | 620 | 690-895 | – | 16 |
Physical Performance
| Physical Performance | Metric | Imperial |
| Density | 7.80g/cc | 0.282 lb/in³ |
Scope of Application
ASTM A709 Gr.36/Gr.50/Gr.50W applies to steel structure/steel processing parts for bridges, railways, ships, vehicles, machine tools, etc. ASTM A709 Gr.36/Gr.50/Gr.50W steel includes carbon steel and high-strength low-alloy steel structural sections, plates and bars, and quenched and tempered alloy steel for structural plates.
Equivalent Material
| European Standard | American Standard | Japanese Standard | France | United Kingdom | |||||||
| S355J0W | A242 Gr.1/A588 | SMA50AW | E36WB3 | WR50B | |||||||
| European Standard Old | India | Russia | International | National Standard | |||||||
| Fe510C2KI | Fe510C2K1 | 17G1S | Fe355W | 350AAT | |||||||
| China | USA | Germany | Japan | France | U.K. | internationality | |||||
| GB3077 | AlSI | DIN | JIS | NE | BS | ISO | |||||
| 20Mn2 | 1320
1221 |
20Mn5 | SMn21 | 20M5 | 150M19 | – | |||||
| 30Mn2 | 1330 | 30Mn5 | SMn24 | 32M5 | 150M28 | – | |||||
| 35Mn2 | 1335 | 36Mn5 | SMnl | 35M5 | 150M36 | – | |||||
| 40Mn2 | 1340
1341 |
– | SMn2 | 40M5 | – | – | |||||
| 45Mn2 | 1345 | 46Mn7 | SMn3 | 45M5 | – | – | |||||
| 50Mn2 | 1052 | 50Mn7 | – | 55M5 | – | – | |||||
| 20MnV | – | 20MnV6 | – | – | – | ||||||
| 30Mn2MoW | – | — | – | – | – | ||||||
| 27SiMn | – | 27MnSi5 | – | – | – | ||||||
| 35SiMn | – | 37MnSi5 | – | 38MS5 | – | – | |||||
| 42SiMn | – | 38MnSi4
46MnSi4 |
– | 38MS5 | – | – | |||||
| 20SiMn2MoV | – | – | – | – | – | – | |||||
| 25SiMn2MoV | – | – | – | – | – | – | |||||
| 37SiMn2MoV | – | – | – | – | – | – | |||||
| 40B | 14B35 | 35B2 | – | – | – | – | |||||
| 45B | 50B46H | 45B2 | – | – | – | – | |||||
| 50B | 14B50 | – | – | – | – | – | |||||
| 4OM∏B | 15B41 | – | – | – | – | – | |||||
| 45MnB | 15B48
50B44 |
– | – | – | – | – | |||||
| 20Mn2B | – | – | – | – | – | – | |||||
| 20MnMoB | 80B20 | – | – | – | – | – | |||||
| 15MnVB | – | – | – | – | – | – | |||||
| – | – | – | – | – | – | – | |||||
| – | – | – | – | – | – | – | |||||
| 20MnVB | – | – | – | – | – | – | |||||
| 40MnVB | – | – | – | – | – | – | |||||
| 20MnTiB | – | – | – | – | – | – | |||||
| 25MnTiBRE | – | – | – | – | – | – | |||||
| 2OSiMnVB | – | – | – | – | – | – | |||||
| 15Cr | 5015
5115 |
15Cr3 | SCr21 | 12C3 | 523A14
523M15 |
– | |||||
| 15CrA | – | – | – | – | – | – | |||||
| 20Cr | 5120 | 20Cr4 | SCr22 | 18C3
18C4 |
527A19
527M20 |
683/11
20Cr4 20CrS4 |
|||||
| 30Cr | 5130 | 28Cr4 | SCr2 | 28C4
32C4 |
530A30
530A32 |
– | |||||
| 35Cr | 5135 | 34Cr4
37Cr4 |
SCr3 | 38C4 | 530A36 | 683/8
3、 3a、 3b |
|||||
| 40Cr | 5140 | 38Cr4
41Cr4 |
SCr4 | 42C4 | 530A40
530M40 |
683/1
4、 4a^ 4b |
|||||
| 45Cr | 5145 | 42Cr4 | SCR5 | 45C4 | – | – | |||||
| 50Cr | 5150
5152 |
– | – | 50C4 | En48 | – | |||||
| 38CrSi | – | – | – | – | – | – | |||||
| 12CrMo | 4119 | 13CrMo44 | – | 12CD4
15CD2 |
– | – | |||||
| 15CrMo | ASTM
A-387Gr. B |
15CrMo5
16CrMo44 |
SCM21 | 15CD4. 05 | BS1653 | – | |||||
| 20CrMo | 4118 | 20CrMo5
22CrMo4 |
SCM22 | 18CD4
20CD4 |
CDS 12
CDSllO |
– | |||||
| 30CrMo | 4130 | 25CrMo4 | SCM2 | 30CD4 | CDS 13 | – | |||||
| 30CrMoA | – | 32CrMol2
3ICRMo12 |
– | – | – | – | |||||
| 35CrMo | 4135
4137 |
34CrMo4
35CrMo4 |
SCM3 | 35CD4 | 78A37 | 683/1
C35ea C35eb |
|||||
| 42CrMo | 4140
4142 |
41CrMo4
42CrMo4 |
SCM4 | 40CD4
42CD4 |
708M40
708A42 709M40 |
683/1
3 |
|||||
| 12CrMoV | – | – | – | – | – | – | |||||
| 35CrMoV | – | 35CrMoV5 | – | – | – | – | |||||
| 12CrlMoV | – | 13CrMoV4.2 | – | – | – | – | |||||
| 25Cr2MoVA | – | 24CrMoV5.5 | – | – | – | – | |||||
| 25Cr2MolVA | – | – | – | – | – | – | |||||
| 20CR3MoWVA | – | 21CrVMoW12 | – | – | – | – | |||||
| 38CrMoΛl | 6370 (ΛMS) | 34CrAlMo5
41CrAlMo7 |
SACM645 | 40CAD6.12 | 905M39 | 683/10
41CrAlMo74 |
|||||
| 20CrV | 6120 | 22CrV4 | – | 22CrV4 | – | – | |||||
| 40CrV | 6140 | 42CrV | – | 42CrV4 | – | – | |||||
| 50CrVA | 6150 | 50CrV4 | SUPlO | 50CV4 | 735A50 | – | |||||
| 15CrMn | – | 16MnCr5 | – | 16MC5 | – | – | |||||
| 20CrMn | 5120 | 20MnCr5 | SMC21 | 20MC5 | – | – | |||||
| 40CrMn | 5140 | – | SMC3 | – | – | – | |||||
| 20CrMnSi | – | – | – | – | – | ||||||
| 25CrMnSi | – | – | SMKl | – | – | – | |||||
| 30CrMnSi | – | – | – | – | – | – | |||||
| 30CrMnSiA | – | – | – | – | – | – | |||||
| 35CrMnSiA | – | – | SMK2 | – | – | – | |||||
| 20CrMnMo | 4119 | 20CrMo5 | SCM23 | – | – | – | |||||
| 40CrMnMo | 4140 | – | – | – | – | – | |||||
| 20CrMnTi | – | – | SMK22 | – | – | – | |||||
| 30CrMnTi | – | 30MnCrTi4 | – | – | – | – | |||||
| 20CrNi | 3120 | 20NiCr6 | – | 20NC6 | 637A16
637M17 |
– | |||||
| 40CrNi | 3140 | 46NiCr6 | SNCl | 35NC6 | 640A35
640M40 |
– | |||||
| 45CrNi | 3145 | 45NiCr6 | – | – | – | – | |||||
| 50CrNi | 3150 | – | – | – | – | – | |||||
| 12CrNi2 | 3115 | 14NiCrlO | SNC21 | IONCll
14NC11 |
– | – | |||||
| 12CrNi3 | 3310 | 13NiCrl2 | SNC22 | 10NC12
14NC12 |
655A12
655M13 |
– | |||||
| 20CrNi3 | – | 22NiCrl4 | – | 20NC11 | – | – | |||||
| 30CrNi3 | – | 28NiCrlO
31NiCrl4 |
SNC2 | 30NC11
30NC12 |
– | – | |||||
| 37CrNi3 | – | 35NiCrl8 | SNC3 | 35NC15 | – | – | |||||
| 12Cr2Ni4 | E3310 | 14NiCrl8 | – | 12NC15 | – | – | |||||
| 20Cr2Ni4 | E3316 | 22NiCrl4 | – | 20NC14 | 659A15
659M15 |
– | |||||
| 20CrNiMo | 8620
8720 |
20NiCrMo2
21NiCrMo2 |
– | 20NCD2 | 805A20
805M20 |
– | |||||
| 40CrNiMoA | 4340
9840 |
36NiCrMo4
40NiCrMo6 |
SNCM8 | 35NCD5
40NCD3 |
817M40
816M40 |
– | |||||
| 45CrNiMoVA | 4437 | – | SNCM9 | – | – | – | |||||
| 18Cr2Ni4WA | |||||||||||
| 25Cr2Ni4WA | |||||||||||
PACKING AND DELIVERY
Our products cover carbon steel, galvanized, galvanized and color-coated products. The company enjoys a high reputation in the steel product chain, and our products are exported to the Middle East, Europe, Latin America, South America and Southeast Asian countries.
HONOR CERTIFICATE
FACTORY WORKSHOP
FAQ
Once the products received by customer were found not comply with the products or contract demands, what will you do?
We will compensate the customer for all the loss without any hesitation.
Do you provide samples Is it free or extra?
Yes, we could offer free samples.
What certifications do your products have?
We have ISO 9001, SGS, EWC and other certifications.
What kind of payment terms would you accept?
We always do T/T.30% T/T as deposit,70% T/T as balance.
What is the delivery time?
10-15 days
What is your MOQ?
We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
