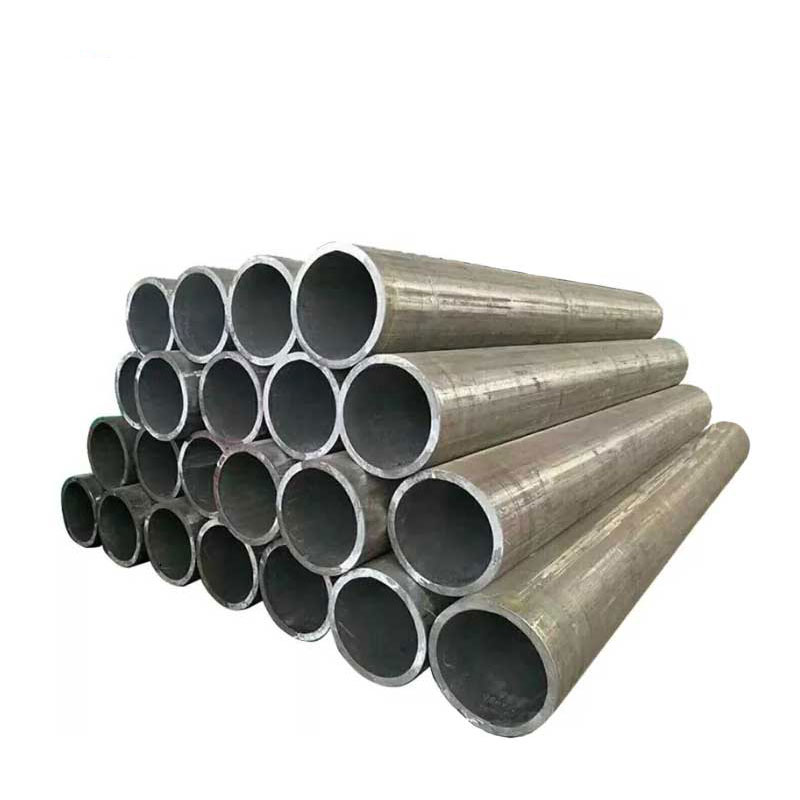

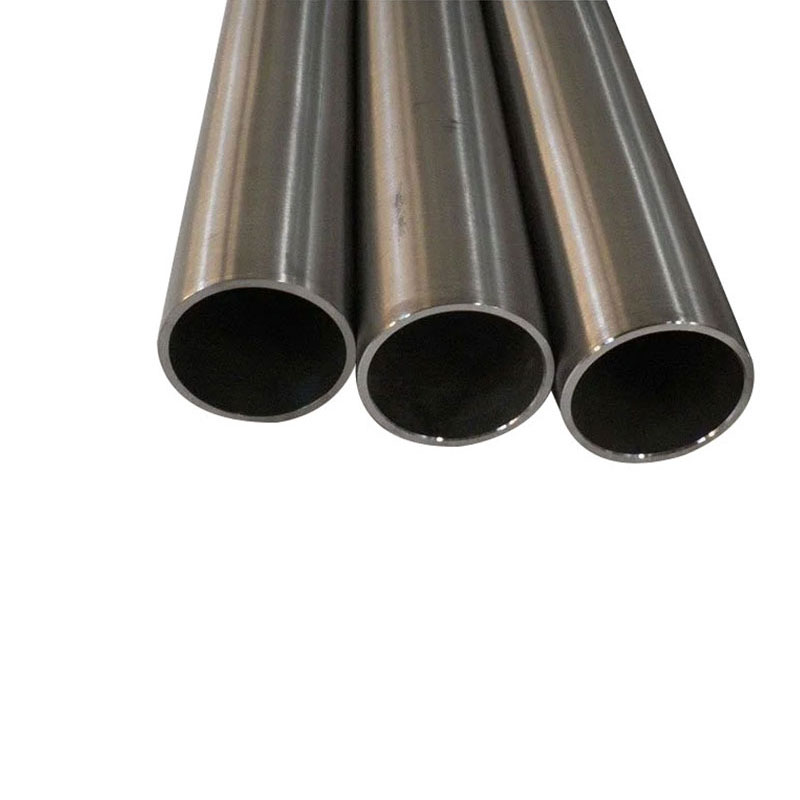

DIN 17175 Seamless Steel Pipe
DIN 17175 is suitable for seamless pipes and is used in the construction of boilers, pipelines, pressure vessels and equipment. The maximum temperature can reach 600 ℃. At the same time, under high pressure, the total stress and related fouling conditions can increase or decrease the temperature limit.
Product Parameters
| Product Name | DIN 17175 Seamless Steel Pipe | |
| Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI etc. | |
| Outer Diameter | Seamless: 1/4″-36″ | Welding: 21.3mm-3620mm |
| Round Tube: 1/2″-10″ | Square Tube/Rectangular Tube: 15x15mm-400x600mm | |
| Wall Thickness | Seamless: 1.25mm-50mm | Welding: 1.65mm-65mm |
| Length | 3-12 meters, Support customization | |
| Surface Process | Bright, Polished, Black | |
| Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |
Chemical Composition
| DIN 17175 | C | Si | Mn | P | S | Ni | Cr | Mo | Others |
| St35.8 | 0.17Max | 0.10~0.35 | 0.40~0.80 | 0.040Max | 0.040Max | – | – | – | – |
| St45.8 | 0.21Max | 0.10~0.35 | 0.40~1.20 | 0.040Max | 0.040Max | – | – | – | – |
| 17Mn4 | 0.14~0.20 | 0.20~0.40 | 0.90~1.20 | 0.040Max | 0.040Max | – | 0.30Max | – | – |
| 19Mn5 | 0.17~0.22 | 0.30~0.60 | 1.00~1.30 | 0.040Max | 0.040Max | – | 0.30Max | – | – |
| 15Mo3 | 0.12~0.20 | 0.10~0.35 | 0.40~0.80 | 0.035Max | 0.035Max | – | – | 0.25~0.35 | – |
| 13CrMo910 | 0.10~0.18 | 0.10~0.35 | 0.40~0.70 | 0.035Max | 0.035Max | – | 0.70~1.10 | 0.45~0.65 | – |
| 10CrMo910 | 0.08~0.15 | 0.50Max | 0.40~0.70 | 0.035Max | 0.035Max | – | 2.00~2.50 | 0.90~1.20 | – |
| 14MoV63 | 0.10~0.18 | 0.10~0.35 | 0.40~0.70 | 0.035Max | 0.035Max | – | 0.30~0.60 | 0.50~0.70 | V: 0.22~0.32 |
| X20CrMoV121 | 0.17~0.23 | 0.50Max | 0.40~0.70 | 0.030Max | 0.030Max | 0.30~0.80 | 10.00~12.50 | 0.80~1.20 | V: 0.25~0.35 |
Mechanical Properties
| DIN 17175 | Material No. | Minimum Yield Point MPa or N/mm2 | Tensile Strength | |
| WT:16mm Max | WT:16-40mm | |||
| St35.8 | 1.0305 | 235 | 225 | 360~480 |
| St45.8 | 1.0405 | – | 245 | 410~530 |
| 17Mn4 | 1.0481 | – | 275 | 460~580 |
| 19Mn5 | 1.0482 | – | 315 | 510~610 |
| 15Mo3 | 1.5415 | 275 | 275 | 450~600 |
| 13CrMo910 | 1.7335 | 295 | 295 | 440~590 |
| 10CrMo910 | 1.7380 | 285 | 285 | 450~600 |
| 14MoV63 | 1.7715 | 325 | 325 | 460~610 |
| X20CrMoV121 | 1.4922 | 490 | 490 | 690~850 |
Scope of Application
DIN 17175 alloy steel pipe adopts heat-resistant pipe, which is suitable for high-pressure environment below 600 ℃. The application scope includes the construction of boilers, pipelines, pressure vessels and equipment.
| USA | Japan | Germany | U.K. | France | Italy | Spain | Switzerland | China | ||
| AISI/SAE | JIS | W‐nr. | DIN | BS | EN | AFNOR | UNI | UNE | SS | GB |
| A570.36 | STKM 12A | 1.0038 | RSt.37‐2 | 4360 | ‐ | E 24‐2 | ‐ | ‐ | 1311 | 15 |
| – | STKM 12C | – | – | 40 C | – | Ne | – | – | – | – |
| 1015 | ‐ | 1.0401 | C15 | 080M15 | ‐ | CC12 | C15, C16 | F.111 | 1350 | 15 |
| 1020 | ‐ | 1.0402 | C22 | 050A20 | 2C | CC20 | C20, C21 | F.112 | 1450 | 20 |
| 1213 | SUM22 | 1.0715 | 9SMn28 | 230M07 | 1A | S250 | CF9SMn28 | F.2111 | 1912 | Y15 |
| 11SMn28 | ||||||||||
| 12L13 | SUM22L | 1.0718 | 9SMnPb28 | ‐ | ‐ | S250Pb | CF9SMnPb28 | 11SMnPb28 | 1914 | ‐ |
| ‐ | ‐ | 1.0722 | 10SPb20 | ‐ | ‐ | 10PbF2 | CF10Pb20 | 10SPb20 | ‐ | ‐ |
| 1215 | ‐ | 1.0736 | 9SMn36 | 240M07 | 1B | S300 | CF9SMn36 | 12SMn35 | ‐ | Y13 |
| 12L14 | ‐ | 1.0737 | 9SMnPb36 | ‐ | ‐ | S300PB | CF9SMnPb36 | 12SMnP35 | 1926 | ‐ |
| 1015 | S15C | 1.1141 | Ck15 | 080M15 | 32C | XC12 | C16 | C15K | 1370 | 15 |
| 1025 | S25C | 1.1158 | Ck25 | ‐ | ‐ | ‐ | ‐ | ‐ | ‐ | 25 |
| A572-60 | ‐ | 1.890 | StE380 | 4360 55 | ‐ | ‐ | FeE390KG | ‐ | 2145 | ‐ |
| 1035 | ‐ | 1.0501 | C35 | 060A35 | ‐ | CC35 | C35 | F.113 | 1550 | 35 |
| 1045 | ‐ | 1.0503 | C45 | 080M46 | ‐ | CC45 | C45 | F.114 | 1650 | 45 |
| 1140 | ‐ | 1.0726 | 35S20 | 212M36 | 8M | 35MF4 | ‐ | F210G | 1957 | ‐ |
| 1039 | ‐ | 1.1157 | 40Mn4 | 150M36 | 15 | 35M5 | ‐ | ‐ | ‐ | 40Mn |
| 1335 | SMn438(H) | 1.1167 | 36Mn5 | ‐ | ‐ | 40M5 | ‐ | 36Mn5 | 2120 | 35Mn2 |
| 1330 | SCMn1 | 1.1170 | 28Mn6 | 150M28 | 14A | 20M5 | C28Mn | ‐ | ‐ | 30Mn |
| 1035 | S35C | 1.1183 | Cf35 | 060A35 | ‐ | XC38TS | C36 | ‐ | 1572 | 35Mn |
| 1045 | S45C | 1.1191 | Ck45 | 080M46 | ‐ | XC42 | C45 | C45K | 1672 | Ck45 |
| 1050 | S50C | 1.1213 | Cf53 | 060A52 | ‐ | XC48TS | C53 | ‐ | 1674 | 50 |
| 1055 | ‐ | 1.0535 | C55 | 070M55 | 9 | ‐ | C55 | ‐ | 1655 | 55 |
| 1060 | ‐ | 1.0601 | C60 | 080A62 | 43D | CC55 | C60 | ‐ | ‐ | 60 |
| 1055 | S55C | 1.1203 | Ck55 | 070M55 | ‐ | XC55 | C50 | C55K | ‐ | 55 |
| 1060 | S58C | 1.1221 | Ck60 | 080A62 | 43D | XC60 | C60 | ‐ | 1678 | 60Mn |
| 1095 | ‐ | 1.1274 | Ck101 | 060A96 | ‐ | XC100 | ‐ | F.5117 | 1870 | ‐ |
| W1 | SK3 | 1.1545 | C105W1 | BW1A | ‐ | Y105 | C36KU | F.5118 | 1880 | ‐ |
| W210 | SUP4 | 1.1545 | C105W1 | BW2 | ‐ | Y120 | C120KU | F.515 | 2900 | ‐ |
PACKING AND DELIVERY
Our products cover carbon steel, galvanized, galvanized and color-coated products. The company enjoys a high reputation in the steel product chain, and our products are exported to the Middle East, Europe, Latin America, South America and Southeast Asian countries.
HONOR CERTIFICATE
FACTORY WORKSHOP
FAQ
Once the products received by customer were found not comply with the products or contract demands, what will you do?
We will compensate the customer for all the loss without any hesitation.
Do you provide samples Is it free or extra?
Yes, we could offer free samples.
What certifications do your products have?
We have ISO 9001, SGS, EWC and other certifications.
What kind of payment terms would you accept?
We always do T/T.30% T/T as deposit,70% T/T as balance.
What is the delivery time?
10-15 days
What is your MOQ?
We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
