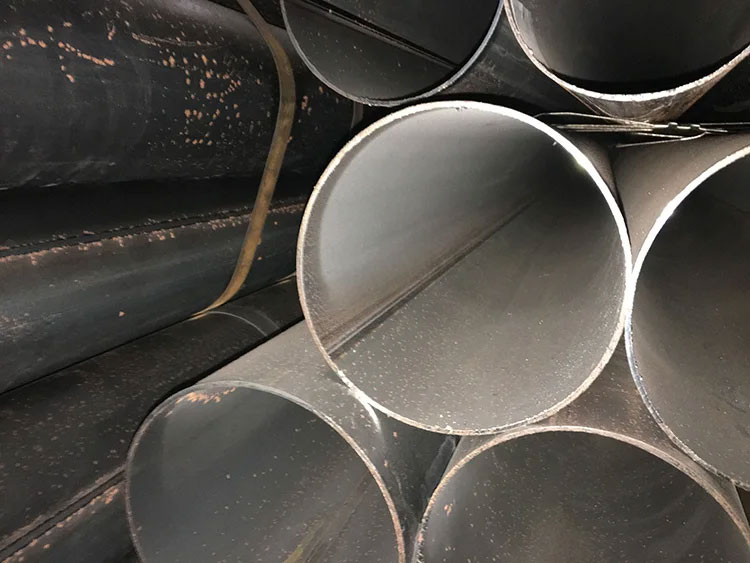

EN 10219/S235 Welded Steel Pipe
EN 10219 standard is used to produce pipes, and cold-formed steel pipes EN 10219 S235JR are very suitable for welded structures.
Product Parameters
| Product Name | EN 10219/S235 Welded Steel Pipe | |
| Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI etc. | |
| Outer Diameter | Seamless: 1/4″-36″ | Welding: 21.3mm-3620mm |
| Round Tube: 1/2″-10″ | Square Tube/Rectangular Tube: 15x15mm-400x600mm | |
| Wall Thickness | Seamless: 1.25mm-50mm | Welding: 1.65mm-65mm |
| Length | 3-12 meters, Support customization | |
| Surface Process | Bright, Polished, Black | |
| Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |
Chemical Composition
| Grade | C | Mn | P | Si | S | N |
| S235JRH | 0.17 | 0.040 | 1.40 | – | 0.040 | 0.009 |
| S355J0H | 0.22 | 0.035 | 1.60 | 0.55 | 0.035 | 0.009 |
| S275J2H | 0.20 | 0.030 | 1.50 | – | 0.030 | – |
| S355J2H | 0.22 | 0.030 | 1.60 | 0.55 | 0.030 | – |
| S275J0H | 0.20 | 0.035 | 1.50 | – | 0.035 | 0.009 |
| S355K2H | 0.22 | 0.030 | 1.60 | 0.55 | 0.030 | – |
Mechanical Properties
| EN10210 | Yield Strength | Elongation(%) | Tensile Strength | Test Temperature(Celsius) | ||
| -20 | 0 | 20 | ||||
| S355J2H | 355 | 22 | 510-680 | 27 | – | – |
| S275J0H | 275 | 23 | 410-560 | – | 27 | – |
| S275J2H | 275 | 23 | 410-560 | 27 | – | – |
| S235JRH | 235 | 26 | 360-510 | – | – | 27 |
| S355J0H | 355 | 22 | 510-680 | – | 27 | – |
| S355K2H | 355 | 22 | 510-680 | 40 | – | – |
Scope of Application
Welded pipe products are widely used in water engineering, petrochemical industry, chemical industry, power industry, agricultural irrigation and so on.
| USA | Japan | Germany | U.K. | France | Italy | Spain | Switzerland | China | ||
| AISI/SAE | JIS | W‐nr. | DIN | BS | EN | AFNOR | UNI | UNE | SS | GB |
| A570.36 | STKM 12A | 1.0038 | RSt.37‐2 | 4360 | ‐ | E 24‐2 | ‐ | ‐ | 1311 | 15 |
| – | STKM 12C | – | – | 40 C | – | Ne | – | – | – | – |
| 1015 | ‐ | 1.0401 | C15 | 080M15 | ‐ | CC12 | C15, C16 | F.111 | 1350 | 15 |
| 1020 | ‐ | 1.0402 | C22 | 050A20 | 2C | CC20 | C20, C21 | F.112 | 1450 | 20 |
| 1213 | SUM22 | 1.0715 | 9SMn28 | 230M07 | 1A | S250 | CF9SMn28 | F.2111 | 1912 | Y15 |
| 11SMn28 | ||||||||||
| 12L13 | SUM22L | 1.0718 | 9SMnPb28 | ‐ | ‐ | S250Pb | CF9SMnPb28 | 11SMnPb28 | 1914 | ‐ |
| ‐ | ‐ | 1.0722 | 10SPb20 | ‐ | ‐ | 10PbF2 | CF10Pb20 | 10SPb20 | ‐ | ‐ |
| 1215 | ‐ | 1.0736 | 9SMn36 | 240M07 | 1B | S300 | CF9SMn36 | 12SMn35 | ‐ | Y13 |
| 12L14 | ‐ | 1.0737 | 9SMnPb36 | ‐ | ‐ | S300PB | CF9SMnPb36 | 12SMnP35 | 1926 | ‐ |
| 1015 | S15C | 1.1141 | Ck15 | 080M15 | 32C | XC12 | C16 | C15K | 1370 | 15 |
| 1025 | S25C | 1.1158 | Ck25 | ‐ | ‐ | ‐ | ‐ | ‐ | ‐ | 25 |
| A572-60 | ‐ | 1.890 | StE380 | 4360 55 | ‐ | ‐ | FeE390KG | ‐ | 2145 | ‐ |
| 1035 | ‐ | 1.0501 | C35 | 060A35 | ‐ | CC35 | C35 | F.113 | 1550 | 35 |
| 1045 | ‐ | 1.0503 | C45 | 080M46 | ‐ | CC45 | C45 | F.114 | 1650 | 45 |
| 1140 | ‐ | 1.0726 | 35S20 | 212M36 | 8M | 35MF4 | ‐ | F210G | 1957 | ‐ |
| 1039 | ‐ | 1.1157 | 40Mn4 | 150M36 | 15 | 35M5 | ‐ | ‐ | ‐ | 40Mn |
| 1335 | SMn438(H) | 1.1167 | 36Mn5 | ‐ | ‐ | 40M5 | ‐ | 36Mn5 | 2120 | 35Mn2 |
| 1330 | SCMn1 | 1.1170 | 28Mn6 | 150M28 | 14A | 20M5 | C28Mn | ‐ | ‐ | 30Mn |
| 1035 | S35C | 1.1183 | Cf35 | 060A35 | ‐ | XC38TS | C36 | ‐ | 1572 | 35Mn |
| 1045 | S45C | 1.1191 | Ck45 | 080M46 | ‐ | XC42 | C45 | C45K | 1672 | Ck45 |
| 1050 | S50C | 1.1213 | Cf53 | 060A52 | ‐ | XC48TS | C53 | ‐ | 1674 | 50 |
| 1055 | ‐ | 1.0535 | C55 | 070M55 | 9 | ‐ | C55 | ‐ | 1655 | 55 |
| 1060 | ‐ | 1.0601 | C60 | 080A62 | 43D | CC55 | C60 | ‐ | ‐ | 60 |
| 1055 | S55C | 1.1203 | Ck55 | 070M55 | ‐ | XC55 | C50 | C55K | ‐ | 55 |
| 1060 | S58C | 1.1221 | Ck60 | 080A62 | 43D | XC60 | C60 | ‐ | 1678 | 60Mn |
| 1095 | ‐ | 1.1274 | Ck101 | 060A96 | ‐ | XC100 | ‐ | F.5117 | 1870 | ‐ |
| W1 | SK3 | 1.1545 | C105W1 | BW1A | ‐ | Y105 | C36KU | F.5118 | 1880 | ‐ |
| W210 | SUP4 | 1.1545 | C105W1 | BW2 | ‐ | Y120 | C120KU | F.515 | 2900 | ‐ |

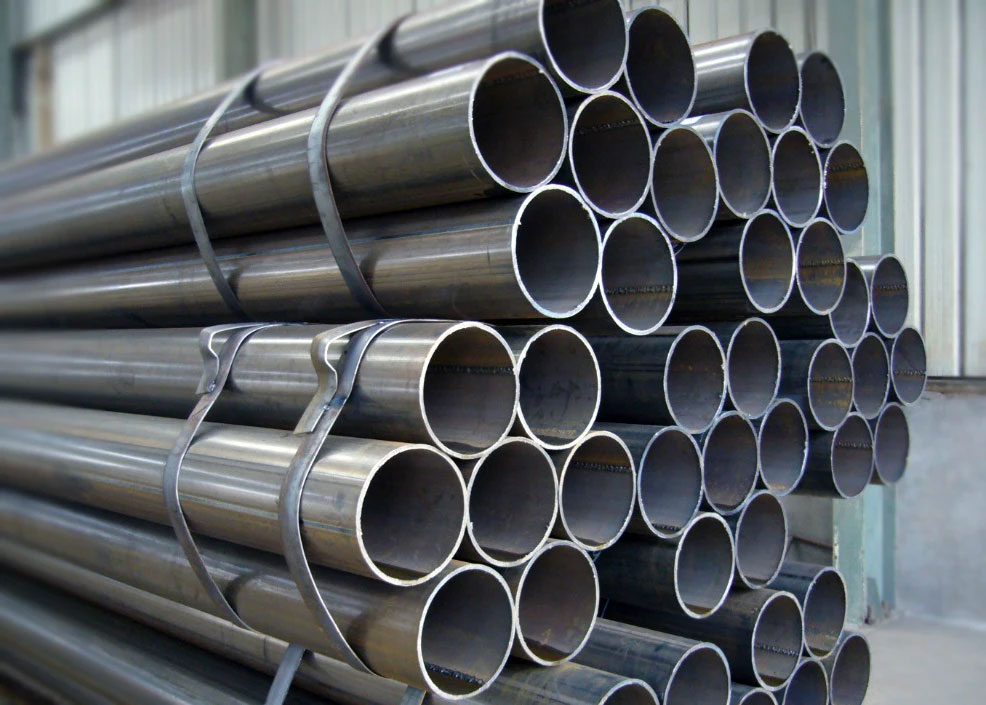

PACKING AND DELIVERY
Our products cover carbon steel, galvanized, galvanized and color-coated products. The company enjoys a high reputation in the steel product chain, and our products are exported to the Middle East, Europe, Latin America, South America and Southeast Asian countries.
HONOR CERTIFICATE
FACTORY WORKSHOP
FAQ
Once the products received by customer were found not comply with the products or contract demands, what will you do?
We will compensate the customer for all the loss without any hesitation.
Do you provide samples Is it free or extra?
Yes, we could offer free samples.
What certifications do your products have?
We have ISO 9001, SGS, EWC and other certifications.
What kind of payment terms would you accept?
We always do T/T.30% T/T as deposit,70% T/T as balance.
What is the delivery time?
10-15 days
What is your MOQ?
We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
