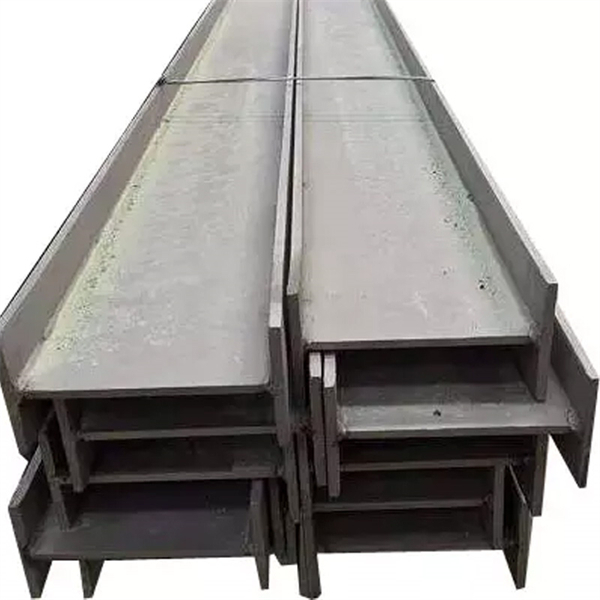

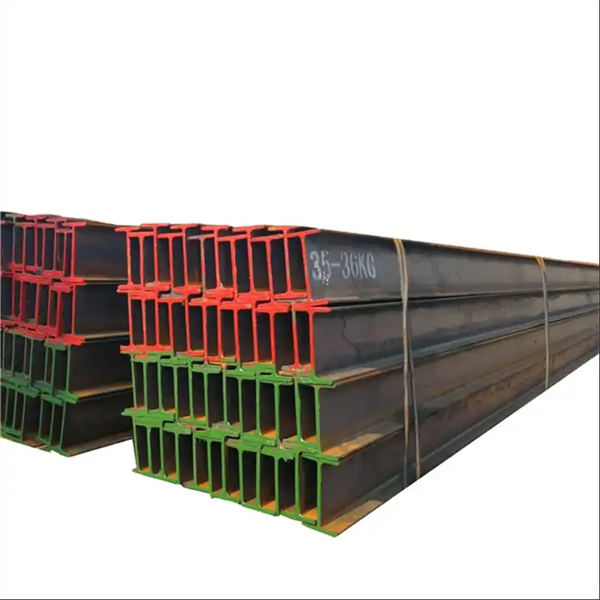

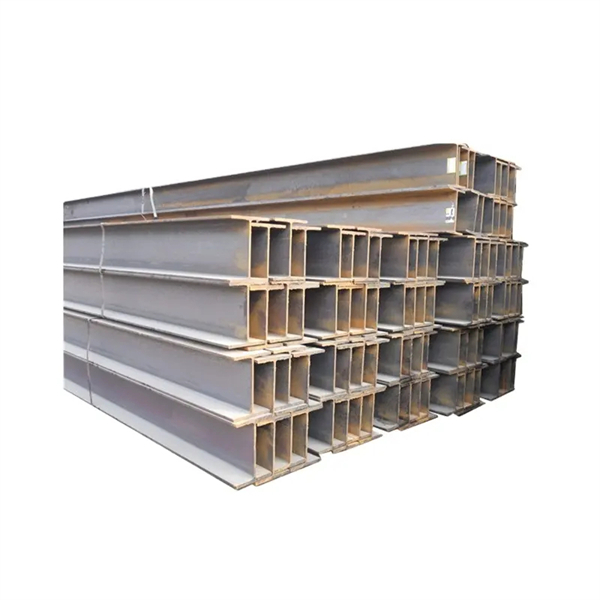

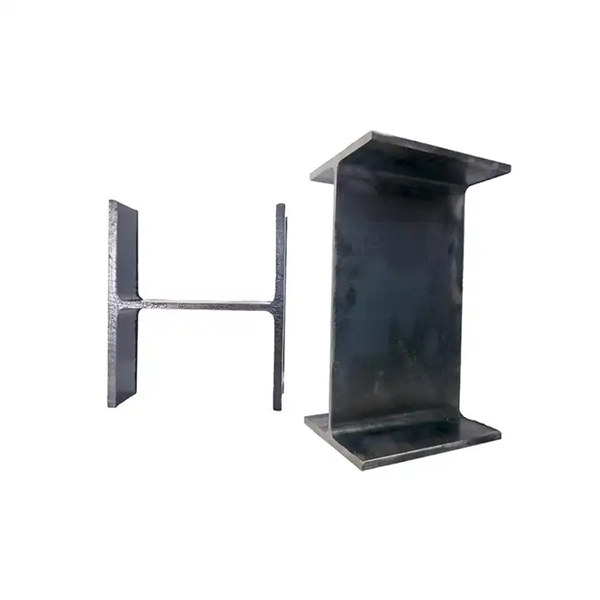

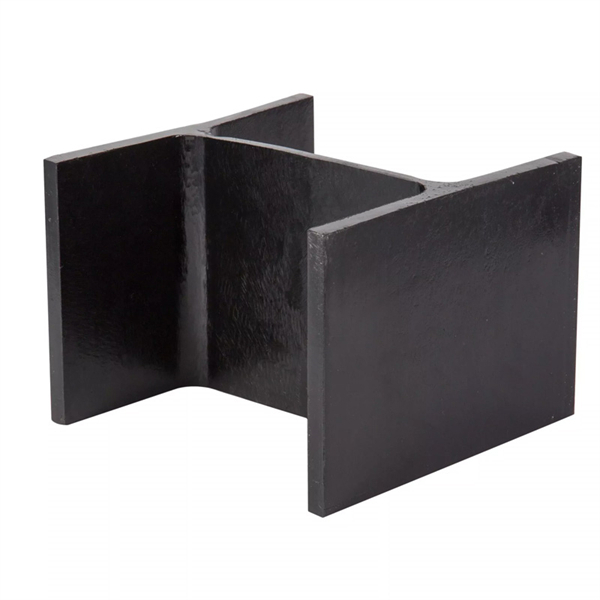

产品描述：H-shaped steel is an economical cross-section high-efficiency section with more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio. It is named because its cross-section is the same as the English letter “H”. Since all parts of the H-shaped steel are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance in all directions, simple construction, cost saving and light structural weight, and has been widely used.
| Product Name | H Beam | |||||||
| Grade | Q195,Q215,Q235,Q345,16Mn,ASTMA36,ASTMA572,SS400,SS490,A36,S235JR,S355JR,ST37,ST52,etc | |||||||
| Standard | AISI, ASTM, BS, DIN, GB, JIS, EN,etc | |||||||
| Flange Thickness | 7-24mmmm | |||||||
| Flange Width | 50-300mm | |||||||
| Web Thickness | 5-13mm | |||||||
| Web Width | 100-700mm | |||||||
| Length | 5.8m,6m,9m,11.8m,12m or as your requirement | |||||||
| Surface | Perforated/galvanized/black/Paint
Bright, Polished, Turn smooth(Peeled),Brush, Mill,Pickled |
|||||||
| Technique | Hot-rolled and High frequency welded | |||||||
| Application | 1.Industrial structure of the steel structure bearing bracket
2.Underground engineering steel pile and retaining structure 4.Large span steel bridge components 5.Ships,machinery manufacturing frame structure 6.The train, automobile, tractor beam bracket 7.Port of conveyor belt, high speed damper bracket |
|||||||
| Packing | In bulk or container,Standard seaworthy packing or as your required | |||||||
| Delivery Time | Within 7days | |||||||
| Designation | Unit Weight (kg/m) |
Standard Secional Dimension (mm) |
Sectional |
|||||
| W | H | B | T1 | T2 | r | A | ||
| HE100 | A | 16.7 | 96.0 | 100.0 | 5.0 | 8.0 | 12.0 | 21.24 |
| B | 20.4 | 100.0 | 100.0 | 6.0 | 10.0 | 12.0 | 26.04 | |
| M | 41.8 | 120.0 | 106.0 | 12.0 | 20.0 | 12.0 | 53.24 | |
| HE120 | A | 19.9 | 114.0 | 120.0 | 5.0 | 8.0 | 12.0 | 25.34 |
| B | 26.7 | 120.0 | 120.0 | 6.5 | 11.0 | 12.0 | 34.01 | |
| M | 52.1 | 140.0 | 126.0 | 12.5 | 21.0 | 12.0 | 66.41 | |
| HE140 | A | 24.7 | 133.0 | 140.0 | 5.5 | 8.5 | 12.0 | 31.42 |
| B | 33.7 | 140.0 | 140.0 | 7.0 | 12.0 | 12.0 | 42.96 | |
| M | 63.2 | 160.0 | 146.0 | 13.0 | 22.0 | 12.0 | 80.56 | |
| HE160 | A | 30.4 | 152.0 | 160.0 | 6.0 | 9.0 | 15.0 | 38.77 |
| B | 42.6 | 160.0 | 160.0 | 8.0 | 13.0 | 15.0 | 54.25 | |
| M | 76.2 | 180.0 | 166.0 | 14.0 | 23.0 | 15.0 | 97.05 | |
| HE180 | A | 35.5 | 171.0 | 180.0 | 6.0 | 9.5 | 15.0 | 45.25 |
| B | 51.2 | 180.0 | 180.0 | 8.5 | 14.0 | 15.0 | 65.25 | |
| M | 88.9 | 200.0 | 186.0 | 14.5 | 24.0 | 15.0 | 113.3 | |
| HE200 | A | 42.3 | 190.0 | 200.0 | 6.5 | 10.0 | 18.0 | 53.83 |
| B | 61.3 | 200.0 | 200.0 | 9.0 | 15.0 | 18.0 | 78.08 | |
| M | 103 | 220.0 | 206.0 | 15.0 | 25.0 | 18.0 | 131.3 | |
| HE220 | A | 50.5 | 210.0 | 220.0 | 7.0 | 11.0 | 18.0 | 64.34 |
| B | 71.5 | 220.0 | 220.0 | 9.5 | 16.0 | 18.0 | 91.04 | |
| M | 117 | 240.0 | 226.0 | 15.5 | 26.0 | 18.0 | 149.4 | |
| HE240 | AA | 47.4 | 224.0 | 240.0 | 6.5 | 9.0 | 21.0 | 60.38 |
| A | 60.3 | 230.0 | 240.0 | 7.5 | 12.0 | 21.0 | 76.84 | |
| B | 83.2 | 240.0 | 240.0 | 10.0 | 17.0 | 21.0 | 106.0 | |
| M | 157 | 270.0 | 248.0 | 18.0 | 32.0 | 21.0 | 199.6 | |
| HE260 | AA | 54.1 | 244.0 | 260.0 | 6.5 | 9.5 | 24.0 | 68.97 |
| A | 68.2 | 250.0 | 260.0 | 7.5 | 12.5 | 24.0 | 86.82 | |
| B | 92.9 | 260.0 | 260.0 | 10.0 | 17.5 | 24.0 | 118.4 | |
| M | 172 | 290.0 | 268.0 | 18.0 | 32.5 | 24.0 | 219.6 | |
| HE280 | AA | 61.3 | 264.0 | 280.0 | 7.0 | 10.0 | 24.0 | 78.02 |
| A | 76.4 | 270.0 | 280.0 | 8.0 | 13.0 | 24.0 | 97.26 | |
| B | 103 | 280.0 | 280.0 | 10.5 | 18.0 | 24.0 | 131.4 | |
| M | 189 | 310.0 | 288.0 | 18.5 | 33.0 | 24.0 | 240.2 | |
| HE300 | AA | 69.8 | 283.0 | 300.0 | 7.5 | 10.5 | 27.0 | 88.91 |
| A | 88.3 | 290.0 | 300.0 | 8.5 | 14.0 | 27.0 | 112.5 | |
| B | 117 | 300.0 | 300.0 | 11.0 | 19.0 | 27.0 | 149.1 | |
| M | 238 | 340.0 | 310.0 | 21.0 | 39.0 | 27.0 | 303.1 | |
| HE320 | AA | 74.3 | 301.0 | 300.0 | 8.0 | 11.0 | 27.0 | 94.58 |
| A | 97.7 | 310.0 | 300.0 | 9.0 | 15.5 | 27.0 | 124.4 | |
| B | 127 | 320.0 | 300.0 | 11.5 | 20.5 | 27.0 | 161.3 | |
| M | 245 | 359.0 | 309.0 | 21.0 | 40.0 | 27.0 | 312.0 | |
| HE340 | AA | 78.9 | 320.0 | 300.0 | 8.5 | 115 | 27.0 | 100.5 |
| A | 105 | 330.0 | 300.0 | 9.5 | 16.5 | 27.0 | 133.5 | |
| B | 134 | 340.0 | 300.0 | 12.0 | 215 | 27.0 | 170.9 | |
| M | 248 | 377.0 | 309.0 | 21.0 | 40.0 | 27.0 | 315.8 | |
| HE360 | AA | 83.7 | 339.0 | 300.0 | 9.0 | 12.0 | 27.0 | 106.6 |
| A | 112 | 350.0 | 300.0 | 10.0 | 17.5 | 27.0 | 142.8 | |
| B | 142 | 360.0 | 300.0 | 12.5 | 22.5 | 27.0 | 180.6 | |
| M | 250 | 395.0 | 308.0 | 21.0 | 40.0 | 27.0 | 318.8 | |
| HE400 | AA | 92.4 | 378.0 | 300.0 | 9.5 | 13.0 | 27.0 | 117.7 |
| A | 125 | 390.0 | 300.0 | 11.0 | 19.0 | 27.0 | 159.0 | |
| B | 155 | 400.0 | 300.0 | 13.5 | 24.0 | 27.0 | 197.8 | |
| M | 256 | 432.0 | 307.0 | 21.0 | 40.0 | 27.0 | 325.8 | |
| HE450 | AA | 99.8 | 425.0 | 300.0 | 10.0 | 13.5 | 27.0 | 127.1 |
| A | 140 | 440.0 | 300.0 | 11.5 | 21.0 | 27.0 | 178.0 | |
| B | 171 | 450.0 | 300.0 | 14.0 | 26.0 | 27.0 | 218.0 | |
| M | 263 | 478.0 | 307.0 | 21.0 | 40.0 | 27.0 | 335.4 | |
PACKING AND DELIVERY
Our products cover carbon steel, galvanized, galvanized and color-coated products. The company enjoys a high reputation in the steel product chain, and our products are exported to the Middle East, Europe, Latin America, South America and Southeast Asian countries.
HONOR CERTIFICATE
FACTORY WORKSHOP
FAQ
Once the products received by customer were found not comply with the products or contract demands, what will you do?
We will compensate the customer for all the loss without any hesitation.
Do you provide samples Is it free or extra?
Yes, we could offer free samples.
What certifications do your products have?
We have ISO 9001, SGS, EWC and other certifications.
What kind of payment terms would you accept?
We always do T/T.30% T/T as deposit,70% T/T as balance.
What is the delivery time?
10-15 days
What is your MOQ?
We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
