Z120 Galvanized Steel Sheet
Certification： ISO, SGS, CE
Origin：China
Stock:：Stock
Surface Treatment: Galvanized
Tolerance：+/-1%
Price Terms：EXW FOB CFR CIF
Packing：Export Standard Package
+8615562863878
sales1@kntsteel.com

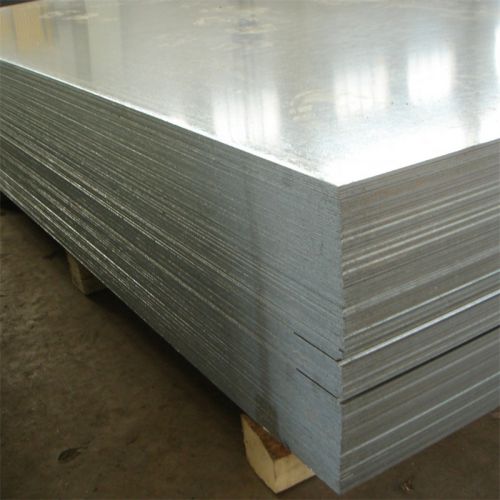

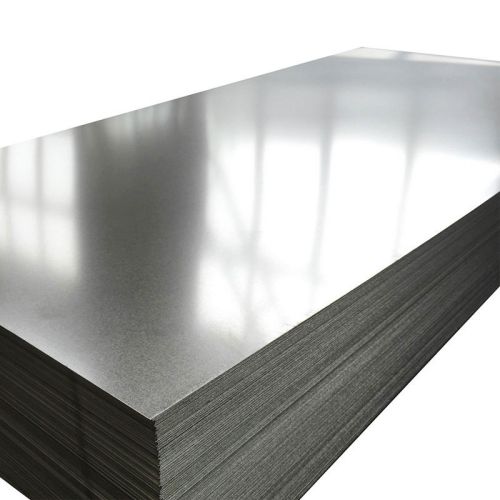

Z120 Galvanized Sheet
Z120 is the coating name, which means that the coating thickness on both sides is approximately 120g/㎡ or 36g/㎡ (three-point test) and 90g/㎡ (single-point test).
Z120 grade galvanized steel coil is coated with zinc to make it more durable. The working principle of the process is to immerse the coiled steel plate in a galvanizing tank filled with molten zinc. Through the continuous galvanizing process of the thin steel sheet, the galvanized coil is obtained. This type of steel has better formability and good paint adhesion in commercial or architectural use. Another method of producing galvanized steel sheet is through a hot-dip plating process. In this method, it is essential that the steel sheet is heat-treated at 500°C immediately after the exit of the can to form the alloy film coating.
Scope of Application
Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.
Product Parameters
| Product Name | Z120 Galvanized Sheet |
| Thickness | 0.12mm-6.00mm |
| Width | 600mm-1500mm |
| Length | 1m-12m, Support Customization |
| Standard | AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. |
| Zinc Layer | Hot Galvanizing: 60-275g/m² |
| Pre-galvanized: 80-275g/m² |
Chemical Composition
| Standard | Grade | C | Si | Mn | P | S | Ti |
| Forcold Forming
Chinese Standard |
DX51D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 |
| DX52D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX53D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX54D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX56D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX57D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| Forcold Forming
Japanese Standard |
SGCC | 0.15 | 0.50 | 0.80 | 0.050 | 0.030 | 0.025 |
| SGCD1 SGCD2 |
0.12 0.10 |
0.50 0.50 |
0.60 0.45 |
0.040 0.030 |
0.030 0.030 |
0.025 0.025 |
|
| SGCD3 | 0.08 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
| SGCD4 | 0.06 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
| For Structure
Japanese Standard |
SGC340 | 0.25 | 0.50 | 1.70 | 0.200 | 0.035 | 0.025 |
| SGC400 SGC440 |
0.25 0.25 |
0.50 0.50 |
1.70 2.00 |
0.200 0.200 |
0.035 0.035 |
0.150 0.150 |
|
| SGC490 | 0.30 | 0.50 | 2.00 | 0.200 | 0.035 | 0.025 | |
| SGC510 | 0.30 | 0.50 | 2.50 | 0.200 | 0.035 | 0.025 | |
| For Structure
AISI Standard |
S220GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 |
| S250GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
| S280GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
| S320GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
| S350GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.150 | |
| S550GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.150 |
Mechanical Properties
| Grade | Yield Strength MPa≥ | Tensile Strength MPa≥ | Elongation A%≥ |
| DX51D Z/ZM/AZ/AM | 240-380 | 270-500 | 22 |
| DX52D Z/ZM/AZ/AM | 140-300 | 270-420 | 26 |
| DX53D Z/ZM/AZ/AM | 140-260 | 270-380 | 30 |
| DX54D Z/ZM/AZ/AM | 120-220 | 260-350 | 36 |
| S220GD Z/ZM/AM | 220 | 300 | 20 |
| S250GD Z/ZM/AZ/AM | 250 | 330 | 19 |
| S280GD Z/ZM/AM | 280 | 360 | 18 |
| S300GD A/AM | 300 | 380 | 18 |
| S320GD Z/ZM/AM | 320 | 390 | 17 |
| S350GD Z/ZM/AZ/AM | 350 | 420 | 16 |
| S450GD A/AM | 450 | 480 | 15 |
| S550GD Z/ZM/AZ/AM | 550 | 550 | – |
Galvanized Surface Selection
| Use of The Environment | Recommended Zinc Thickness |
| Indoor Use | Z10 or Z12 (100g/㎡or 120g/㎡) |
| Suburbs | Z20 and Painting (200g/㎡) |
| Urban or Industrial Area | Z27 (270g/㎡) or G90 (US Standard) and painted |
| Coastal Area | Thicker than Z27 (270g/㎡) or G90 (US Standard) and painted |
| Punch or Deep Drawing Application | Thicker than Z27 (270grams/㎡) or G90 (US Standard) avoid coating peeling after stamping |
| Surface Treatment Type | Code | Features |
| Chromic Acid Treatment | C | Good corrosion resistance, suitable for bare state |
| Chromic Acid Treatment+Oiling | S | Good corrosion resistance |
| Phosphoric Acid Treatment (Including Sealing Treatment) | P | Have a certain corrosion resistance, good paint performance |
| Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling | Q | Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage |
| Phosphoric Acid Treatment (Excluding Sealing Treatment) | T | Have a certain corrosion resistance, good paint performance |
| Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling | V | Has a certain corrosion resistance, good paint performance, and prevent rust |
| Oiling | O | Prevent rust during transportation and storage |
| No Treatment | M | Suitable for immediate painting |
Material Comparison
| Chinese Standard | Japan Standard | European Standard |
| DX51D Z/DC51D Z (CR) | SGCC | DX51D Z |
| DX52D Z/DC52D Z | SGCD1 | DX52D With |
| DX53D Z/DC53D Z/DX54D Z/DC54D Z | SGCD2/SGCD3 | DX53D Z/DX54D Z |
| S220/250/280/320/350/550GD Z | SGC340/400/440/490/570 | S220/250/280/320/350GD Z |
| DX51D Z/DD51D Z (HR) | SGHC | DX51D Z |
PACKING AND DELIVERY
Our products cover carbon steel, galvanized, galvanized and color-coated products. The company enjoys a high reputation in the steel product chain, and our products are exported to the Middle East, Europe, Latin America, South America and Southeast Asian countries.
HONOR CERTIFICATE
FACTORY WORKSHOP
FAQ
Once the products received by customer were found not comply with the products or contract demands, what will you do?
We will compensate the customer for all the loss without any hesitation.
Do you provide samples Is it free or extra?
Yes, we could offer free samples.
What certifications do your products have?
We have ISO 9001, SGS, EWC and other certifications.
What kind of payment terms would you accept?
We always do T/T.30% T/T as deposit,70% T/T as balance.
What is the delivery time?
10-15 days
What is your MOQ?
We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
